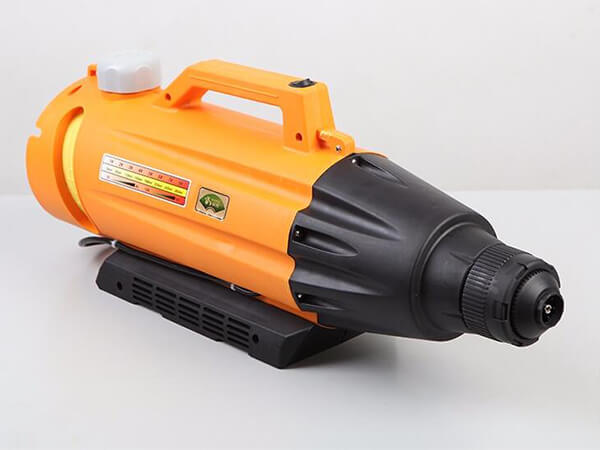

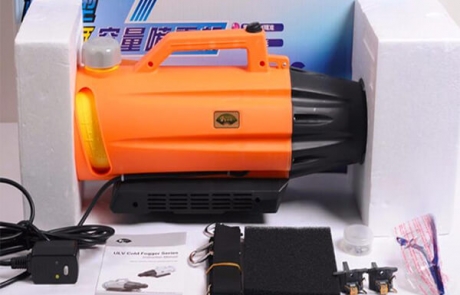

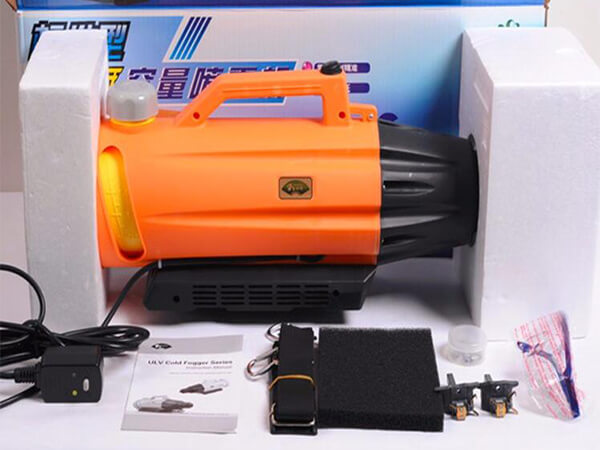

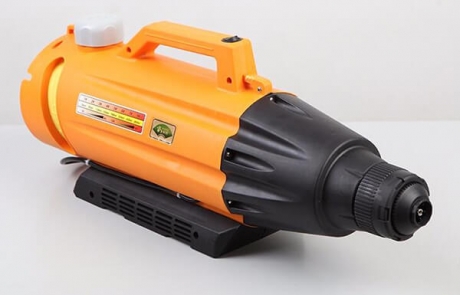

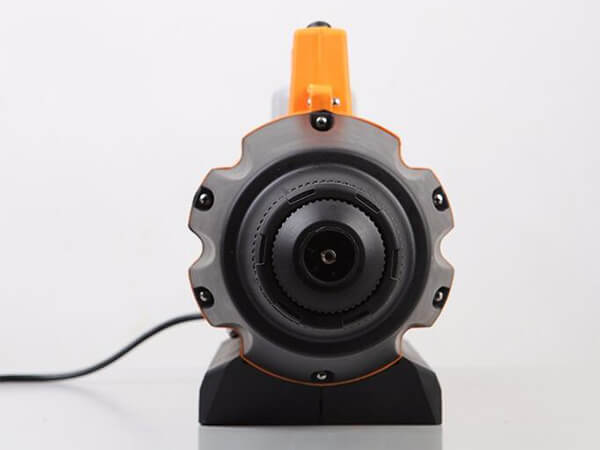

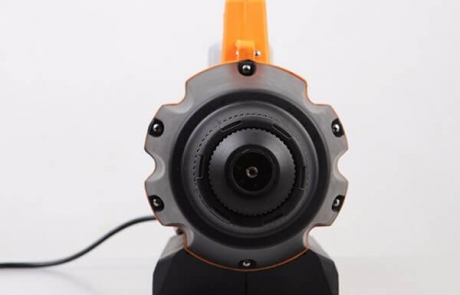

2L ULV Portable Disinfection Fogging Machine (type of electric wire and battery)
Feature of portable disinfection sprayer:
- Disinfectant fogging machine can replace the traditional artificial immune way and improve work efficiency dozens of time.
- By changing different diameter of nozzle and controlling the particles precision, the purpose is to meet all kinds of poultry spray immune work.
- Unique air pressure automatic control design ensures that use of vaccine without leakage.
- Portable work state can be flexible to adjust the immune angle to the overall immune effect.
- Wireless thermostatic control display system can effectively maintain the active vaccine.
Applications of portable disinfection sprayer:
- Disinfection, sterilization, pest control, air purification, anti-virus, disease prevention, epidemic prevention for hospital, school, hotel, household, warehouse, factory etc.
- The spraying disinfection and immunity for poultry farm, veterinary hospital, pet hospital, animal health center, entry-exit inspection and quarantine bureau, customs etc.
The specifications of disinfectant fogging machine with electric wire | ||||||||
Technical specifications: | HTMY-YM02A – Disinfectant Fogger Machine | |||||||
Motor power (W) | 800Â W | |||||||
Voltage(V) | 220/110V | |||||||
Atomization Volume | 50-260ml/min (adjustable) | |||||||
Tank Capacity | 2L | |||||||
Particle size | 20-160 μm (adjustable) | |||||||
Chemical | Â Handles both oil- and water-based chemical solutions | |||||||
Effective range | 6-8m | |||||||
N./G.Weight | 3.1/4.1Kg | |||||||
Package measurement (Mm) | 581×250×229.5 |
The specifications of battery type portable disinfection sprayer | ||||||||
Technical specifications | HTMY-YM02A – Portable Disinfectant Fogger Machine | |||||||
Motor power (W) | 240Â W | |||||||
Voltage(V) | 24VDC | |||||||
Atomization Volume | 50-260ml/min (adjustable) | |||||||
Rotating speed | 60,000 rpm | |||||||
Battery size | 280mm x 80mm x 45mm | |||||||
Tank Capacity | 2L | |||||||
Particle size | 20-160μm (adjustable) | |||||||
Chemical | Â Handles both oil- and water-based chemical solutions | |||||||
Effective range | 6-8m | |||||||
N./G.Weight | 9/9.5Kg | |||||||
Package measurement (Mm) | 655mm x 220mm x 280mm |
Different nozzle and consumption time/L | ||||||||
#1 | #2 | #3 | #4 | #5 | #6 | #7 | #8 | |
20min/L | 10min/L | 7min42s/L | 5min 54s/L | 5min 12s/L | 4min 30s/L | 4min 12s/L | 3min 48s/L | |
20um | 40um | 60um | 80um | 100um | 120um | 140um | 160um |

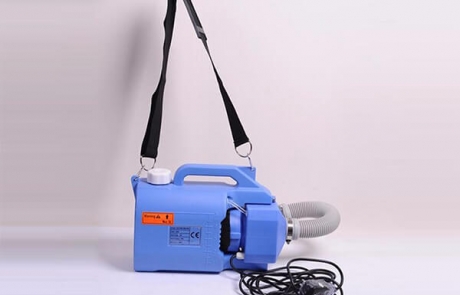

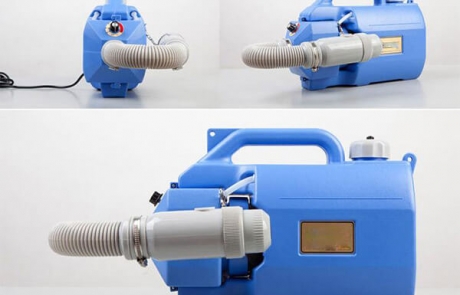

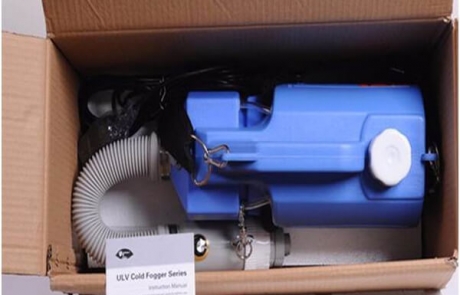

5L Portable Disinfection Forgger
Feature of Portable Disinfectant Fogging Machine:
- Strong penetration, fast spread; With adjustable and uniform droplets, the disinfectant fogger machine is applied for both space spray and residual spray.
- The solution pipe and air pipe are anti corrosion; the fogger head is anti-cracking, shockproof, and constant temperature. The lifespan of the whole machine is long.
- The scale of solution tank and translucent tank cover is easy for you to mix chemical solution precisely.
- Patented technology adopted to prevent the solution from flowing back.
- With frequency-conversion motor, adjustable delivery lift and noise, the fogger is very chemical saving…
Applications of Portable Disinfectant Fogging Machine:
- Disinfection, sterilization, pest control, air purification, anti-virus, disease prevention, epidemic prevention for hospital, school, hotel, household, warehouse, factory etc.
- The spraying disinfection and immunity for poultry farm, veterinary hospital, pet hospital, animal health center, entry-exit inspection and quarantine bureau, customs etc.
The specifications of XD-CD05A- Portable Disinfectant Fogging Machine | ||||||||
Technical specifications: | HTXD-CD05A – disinfecting fogger | |||||||
Motor power (W) | 1000Â W | |||||||
Voltage(V) | 220/50Hz | |||||||
Atomization Volume | 470ml/min (adjustable) | |||||||
Tank Capacity | 5 L | |||||||
Particle size | 10-150 μm (adjustable) | |||||||
Corrugated pipe length | 380mm (standard), 750mm (optional) | |||||||
Spray range | 8-10m | |||||||
N./G.Weight | 2.61kg/3.78kg | |||||||
Package measurement (Mm) | 560×240×320 |
